Decoding the Mystery

1. Understanding Electrical Service Basics

Alright, let's tackle this electrical enigma! If you're scratching your head wondering whether a 50 amp service is 110 or 220, you're not alone. It's a common question, and the answer is actually pretty straightforward: a 50 amp service is almost always 220 volts. Think of it like this; a standard wall outlet is often 110-120 volts for smaller devices, while bigger power needs call for the beefier 220-volt circuit.

Electrical service, in general, refers to the amount of electrical power delivered to your home. Measured in amps (the amount of electrical current) and volts (the electrical potential), it determines what appliances you can run safely and simultaneously. A 50 amp service provides a substantial amount of power, making it suitable for various applications that require a higher electrical load. This includes things like electric vehicle chargers or larger appliances.

The voltage is a key element, because it tells you about the electrical potential that drives the current through the circuit. The higher voltage provides the ability to use electricity for devices that require more power to operate properly. So, if you're considering a 50 amp service, you're usually gearing up for some serious power-hungry equipment.

While rare, there could be some niche situations where a 50 amp service might be configured differently, but for the vast majority of residential and even some commercial applications, it's going to be the higher voltage standard. Now, let's dive a little deeper into why that's the case.

50 Amp Service Wiring Diagram

Why 220 Volts is the Standard for 50 Amp Service

2. The Power Equation

To understand why 50 amp service typically equals 220 volts, you need to grasp the relationship between amps, volts, and watts. Watts, the unit of power, are calculated by multiplying amps by volts (Watts = Amps x Volts). A higher voltage allows you to deliver more power (watts) using the same amperage. Think of it like water flowing through a pipe; higher voltage is like increasing the water pressure, allowing more water (power) to flow through the same-sized pipe (amps).

A 50 amp service at 110 volts would provide 5500 watts (50 x 110). While that's certainly usable, it's often not enough for the high-demand appliances and equipment that a 50 amp circuit is designed to handle. For example, an electric vehicle charger can easily require more than 5500 watts to function properly. The electric car charger is a great example, as it is able to use more power the higher voltage supplied.

By using 220 volts, the same 50 amp service can deliver 11,000 watts (50 x 220), effectively doubling the available power. This is why 220 volts is the preferred standard for 50 amp service. The higher voltage means you can run more powerful equipment without overloading the circuit. A circuit overload can be dangerous and cause a fire!

Therefore, 220 volts is usually a more efficient and practical choice for devices that need higher power, reducing the risk of tripping breakers and ensuring smooth operation. The overall use of the circuit will be less stressful if it is running the ideal voltage for your electrical device.

Wire Size For 220 Volts 50 Amps

Common Uses for 50 Amp, 220 Volt Circuits

3. Powering the Heavy Hitters

So, what exactly are these "heavy hitters" that require a 50 amp, 220 volt circuit? Here are a few common examples:

Electric Vehicle (EV) Chargers: As mentioned earlier, EV chargers are a prime candidate. Level 2 chargers, which provide faster charging speeds, typically require a 220 volt, 50 amp circuit. These EV chargers are a must for new car owners who are driving the future of automobile.

Welding Equipment: Many welders, especially those used for heavier-duty projects, need the power of a 50 amp, 220 volt circuit to operate effectively. Without the proper power, welding jobs can take longer, or not be done at all.

Large Air Conditioners: Central air conditioning units, especially in larger homes, may require a 50 amp, 220 volt circuit to handle their high power consumption. These AC units are a welcome to have during the Summer months, but make sure your electrical can handle it!

Hot Tubs and Saunas: These luxury items also demand a significant amount of power for heating, making a 50 amp, 220 volt circuit a common requirement. Just imagine relaxing in that hot tub knowing your electrical is not being maxed out.

What Is Difference Between 110v And 120v

Safety First

4. Always Consult a Qualified Electrician

Working with electrical systems can be dangerous, so it's crucial to prioritize safety. Never attempt to install or modify a 50 amp circuit unless you are a qualified and licensed electrician. Electricity is not something to take lightly and can be fatal.

Incorrect wiring can lead to electrical shocks, fires, and damage to your appliances. A qualified electrician has the training, experience, and tools necessary to ensure that the installation is done safely and correctly. This ensures a proper ground wire, correct voltage and amperage, and an overall safe electrical environment.

Before starting any electrical work, always turn off the power at the main breaker panel. Verify that the circuit is de-energized using a non-contact voltage tester. It's also a good idea to wear appropriate safety gear, such as insulated gloves and safety glasses.

If you're unsure about any aspect of electrical work, don't hesitate to call a professional. It's always better to be safe than sorry when dealing with electricity. The potential cost of a mistake is far greater than the cost of hiring a qualified electrician. Peace of mind is worth the investment.

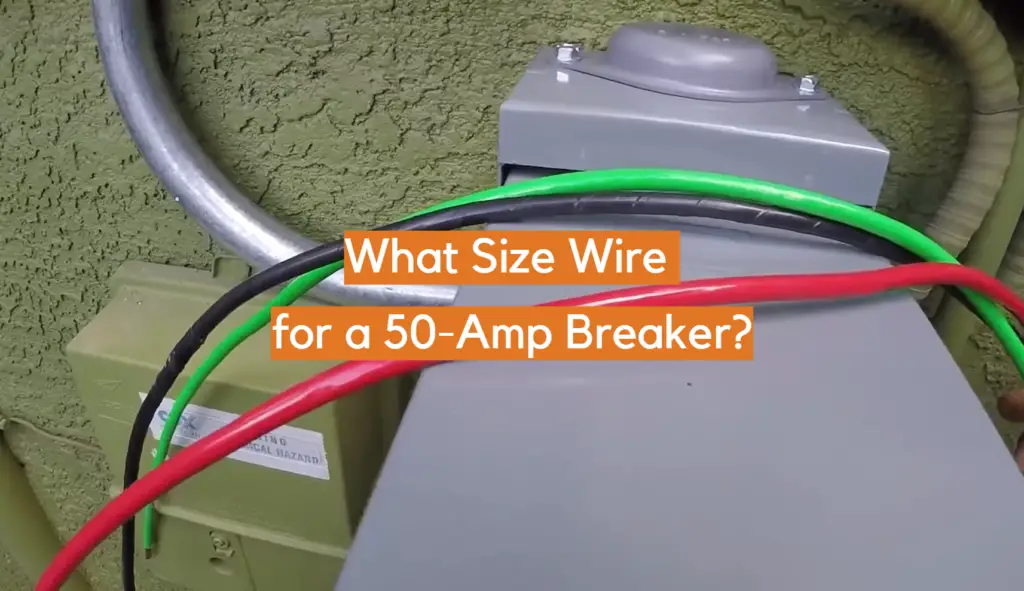

What Size Wire For A 50Amp Breaker? ElectronicsHacks

Checking Your Existing Electrical Service

5. Understanding Your Breaker Panel

If you're wondering about your current electrical setup, start by examining your breaker panel. This is typically a metal box located in your basement, garage, or utility room. The breakers are switches that control the flow of electricity to different circuits in your home.

Each breaker is labeled with a number, which indicates the amperage of the circuit it controls. For example, a breaker labeled "20" controls a 20 amp circuit. The voltage is not typically listed on the breaker itself, but you can usually determine it based on the type of breaker.

Single-pole breakers are typically used for 110-120 volt circuits, while double-pole breakers are used for 220-240 volt circuits. Double-pole breakers are wider than single-pole breakers and take up two slots in the panel. So, a 50 amp, 220 volt circuit will use a double-pole 50 amp breaker.

If you're unsure about the voltage of a particular circuit, consult a qualified electrician. They can use a voltmeter to measure the voltage and ensure that the circuit is properly configured for the intended use. Remember, knowledge is power, but safety is paramount.
